Portable Chargers

Worry-Free Waterproofing, Ultimate Portability: High-Performance Charger for Your Journey

The product features a compact, lightweight, and integrated design with high efficiency, a space-saving structure, enhanced safety and stability, as well as flame-retardant and explosion-proof properties, meeting the IP67 standard in a fanless configuration.

Functional Advantages

product Details

Application Scenarios

1. Compact and lightweight, integrated design

2. High safety and stability

3. High efficiency

4. Flame-retardant and explosion-proof

5. Strong waterproof performance

6. Durable and long-lasting

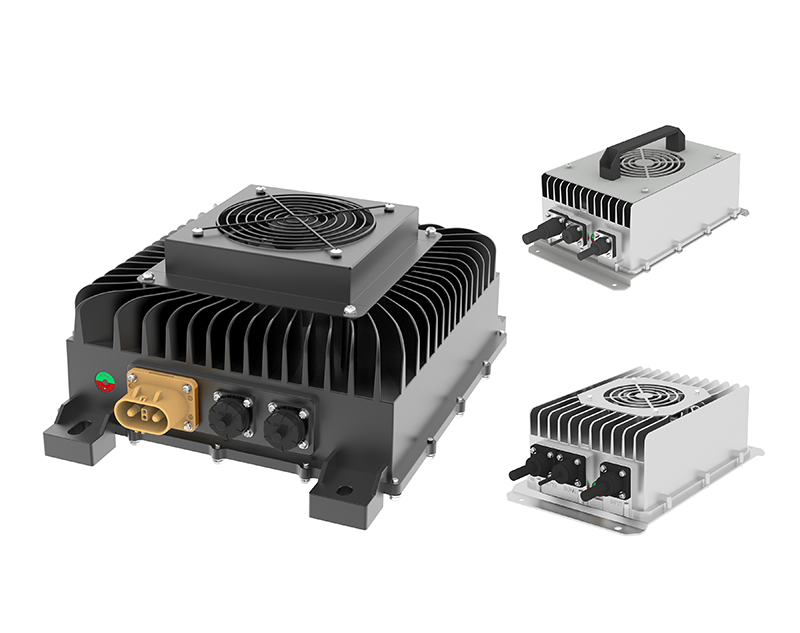

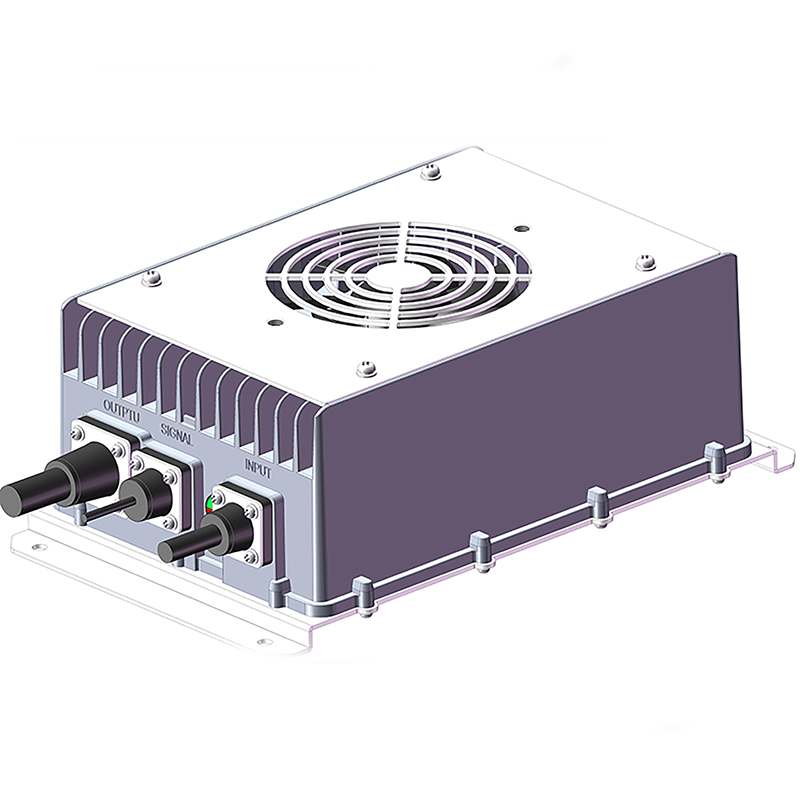

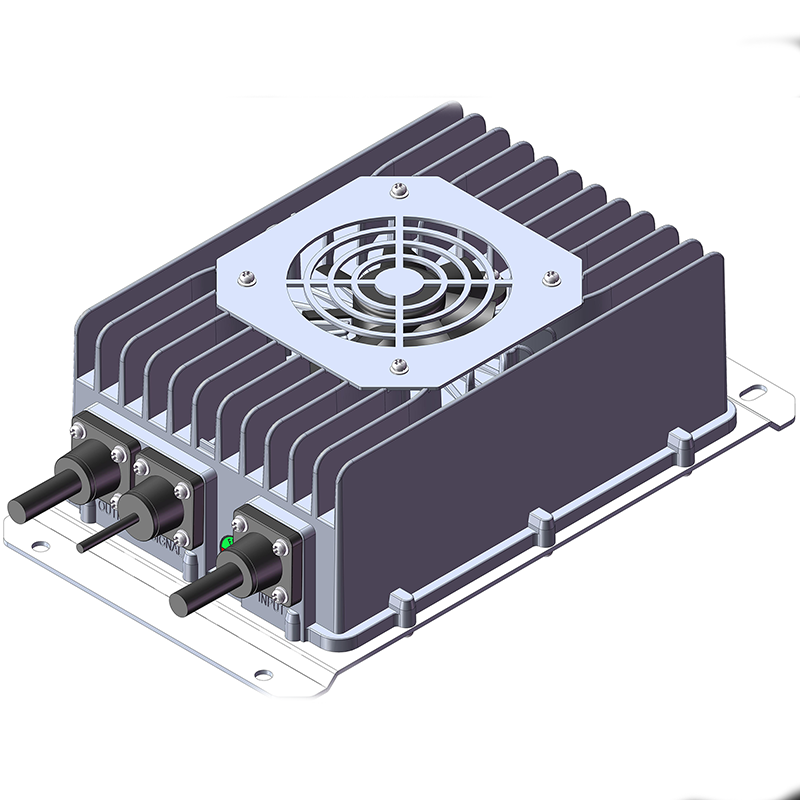

Products Display

Technical Specifications
Model:	TTGF
System Input Characteristics
Input Voltage Range	AC110-230V±15%
Input Current	＜16A
AC Mains Frequency (Hz)	50～60Hz
System Output Characteristics
Output Voltage	20~30VDC /30~44VDC /40~60VDC /55~81VDC
Output Current Range	2~15A /2~20A
Maximum Power	450W/ 600W/ 660W/ 880W/ 900W/ 1200W/ 1215W /1620W
Overall Efficiency	＞90% (Input AC 230V)
Current Stability Accuracy	≤±0.5%
Voltage Ripple	≤±1%
Power Factor	≥0.98(PF)
Communication Interface	CAN Interface
Protection Functions
Reverse Battery Protection	YES
Output Short Circuit Protection	YES
Output Overvoltage & Overcurrent Protection	YES
Overtemperature Protection	Output shuts off if internal temperature exceeds 65℃
Abnormal Protection	Protection shutdown if power device malfunctions, no output
Other Parameters
Ingress Protection Rating	IP65
Operating Temperature	‘-20℃ ~ +65℃ (Output derated between 45-65℃)
Storage Temperature	-40℃～+75℃
Relative Humidity	5～95%
Cooling Method	Forced Air Cooling

1. Warehousing and Logistics

The charger is ideal for charging electric forklifts, AGVs (Automated Guided Vehicles), and pallet jacks, ensuring smooth and continuous operations in busy warehouses or distribution centers. Its portability allows workers to move it to different locations as needed.
